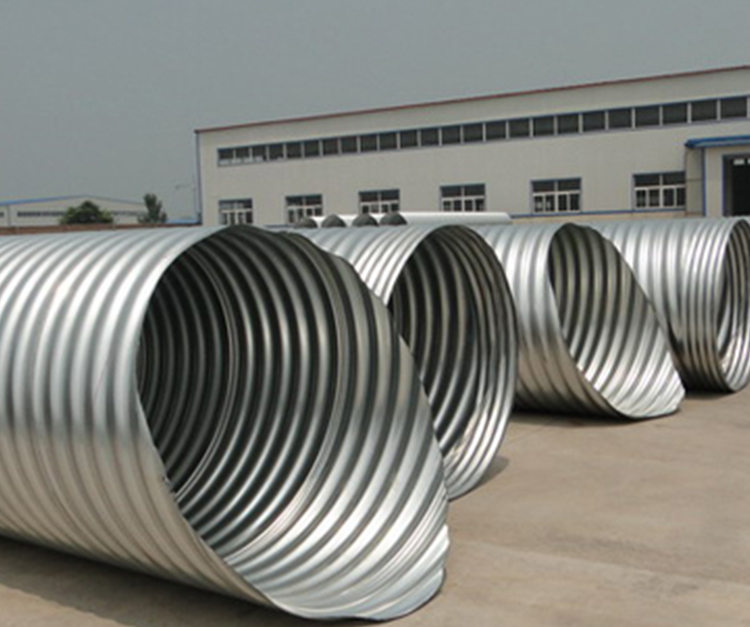

Corrugation 125mm x 25mm

Specification

Pipe diameter: 300-2500mm

Length: 1-12m

Thickness: 1.6-3.2mm

Corrugation 125mm x 25mm

Specification

Pipe diameter: 300-2500mm

Length: 1-12m

Thickness: 1.6-3.2mm


Characteristic of galvanized steel helical spiral corrugated culvert

High strength

It with more than 1.5 times compression strength than the concrete pipe because of the corrugation structure

Easy for transport

The weight of the spiral corrugated culvert is only 1/10~1/5 of same size concrete pipe, even can be carried by people without machine.

Install in shorter time

The spiral corrugated culvert is connect by clamping band or flange, and the length can be make according to the customers’ request, then easy to install, and can be installed in shorter time.

Long service life

The spiral pipe corrugated culvert adopt 300-600g/m2 galvanization steel plate, normally its servise life is 50-100 years, if in the strong corrosion environment, painting asphalt on the in and out surface of the pipe, can enlong 20-50 years based on the normal service life.

Economic

The standard length is 6m, simple connection, shorter working time. Because it is light, easy for transport, with few foundation construction, lower fee on drain pipe. For example, we make comparison on steel corrugated culvert pipe and concrete pipe in diameter 800mm, spiral pipe corrugated culvert is only need about 90% if concrete pipe fee, and it can save cost of forklift, crane, and other machines when the transport is not good.


Cross section shape and size of galvanized steel helical corrugated culvert pipe

Normally, the cross section is round shape, corrugation is 68X13mm, 125X25mm


Application of helical corrugated steel culvert pipe

The helical spiral pipe corrugated culvert is used in municipal drainage,building outside drainage, farm drainage, industry drain system, also adopt in road and railway closed conduit or culvert, shell of vertical pile, rain water collection, etc

Drainage: domestic sewage, golf course drain, underground garage, factory drain, factory, airport water drain.

Culvert: drain-pipe under the road, higher cross drain-pipe, underground culvert of railway, small tunnel, closed conduit, small bridge.

Protection shell: underground communication cable, protection pipe for gas pipe, also can be adopted on construction site, and protection shed, etc

Industry: air conduit for gas in coal mine (negative pressure)

Farm: driven well wall for farm, invert siphon for irrigation,  farm water drain.


Structure

Spiral corrugated culvert is treatment by galvanized steel belt spiral seaming joint

The diameter is smaller than 1m, adopt corrugation 68X13mm, each section standard length is 6m, diameter is bigger than 1m,adopt corrugation 125X25mm, each section standard length is 6m, and we can make different sizes according to customers' requirements.

Corrugated culvert pipe connection by two or more pieces of clamping band or flange, inlay PE plate or sealant or rubber gasket, fasten by high strength bolts.


Material

The steel plate is DX52D or SGHC, chemical and mechanical property should be accord with EN10327 or JIS G 3302-2010, steel plate size tolerance should be accord with GB/T-709

Clamping band and angle steel material is Q235, chemical and mechanical property should be accord with GB/T700

Clamping band or angle steel fastener need to adopt high strength bolts, nuts, the grand should be or higher than 8.8, its property should be accord with GB/T1231

Corrugated pipe adopt hot galvanized steel belt for forming, or after forming then hot galvanization treatment.


Appearance

Clean, smooth, and the zinc coating uniformity.

Clamping band request

Connect pipe sections by clamping band, keep the pipe sections point at pipe sections, prevent separate, the bottom permeate or the filling back material permeate.

Classic clamping band system

When assemble the clamping band, lap over connect to each pipe section equally.

When fastening, the length and width of the part which over lap to the pipe have to can bearing the tightening force.

When assemble the clamp band, make sure the gap between two pipe section can be more than 25mm.

Clamp band width is 440mm

(remarks: normally, the clamp band is two pieces, for the big diameter, maybe need 3 pieces or more)

Angle steel connection request

Angle steel adopt Q235 steel

Flange is made by bending the angle steel, manual electric-arc welding and drilling holes.

Corrugated pipe welding angle steel flange adopt manual electric-arc welding.

Spiral corrugated culvert both end welding flange.

Inner diameter is 1m or smaller than 1m, the pipe flange edge is in length 56mm, thickness 6mm equal-sided angle steel, other flange adopt in edge length 70mm, thickness 6mm equal-sided angle steel, for the big pressure, adopte width 70mm, thickness 6mm flat steel.

After welding flange, the inside and outside welding seam painting Dacromet under normal temperature.



Spiral corrugated pipe apply to the municipal engineering drainage pipe, and engineering decoration, etc.

          wall thickness

           Diameter
1.6mm2.0mm2.8mm3.5mm4.2mm
1200mm


           Min:0.5

Max:17


           Min:0.5

Max:23


           Min:0.5

Max:31


           Min:0.5

Max:35


1400mm


           Min:0.5

Max:15


           Min:0.5

Max:19


           Min:0.5

Max:28


           Min:0.5

Max:36


1500mm


           Min:0.5

Max:13


           Min:0.5

Max:13


           Min:0.5

Max:23


           Min:0.5

Max:30


1600mm


           Min:0.5

Max:12


           Min:0.5

Max:16


           Min:0.5

Max:21


           Min:0.5

Max:31


           Min:0.5

Max:35

1800mm


           Min:0.5

Max:11


           Min:0.5

Max:15


           Min:0.5

Max:20


           Min:0.5

Max:26


           Min:0.5

Max:28

2000mm


           Min:0.5

Max:10


           Min:0.5

Max:13


           Min:0.5

Max:18


           Min:0.5

Max:23


           Min:0.5

Max:28

2200mm


           Min:0.5

Max:9


           Min:0.5

Max:12


           Min:0.5

Max:16


           Min:0.5

Max:21


           Min:0.5

Max:26

2400mm
2700mm
3000mm
3300mm
3600mm
Tips:
           1.the data of sheet means depth of fill, named min and max;
           2.different diameter, thickness,length and other size are available, accroding to your requirement.



For more information on corrugated steel culvert pipe for sale, please contact Yitong Pipe Industry


At Yitong Pipe Industry, we sell a large variety of corrugated steel culvert pipe and many other types and grades of culvert pipe. This includes corrugated steel culvert pipe at discounted prices. We can also fabricate any type of corrugated steel culvert pipe or structural steel that you may need for your next construction project. We can culvert pipe to fit any length and can ship steel culvert pipe to your job site anywhere in the United States, Canada or Mexico.


To learn more about the types of pipe we can supply or to view our current selection of corrugated steel culvert pipe, please contact us online or via email today and ask us a direct question.
