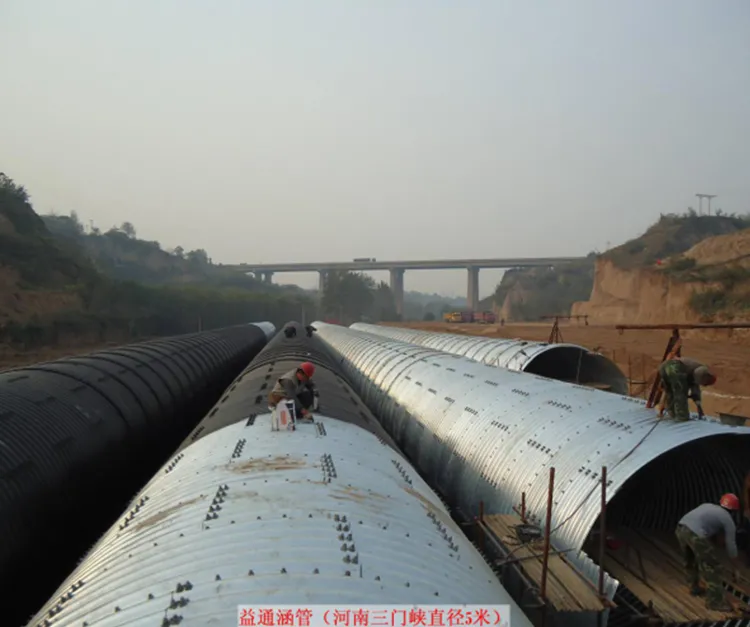

Riveted Galvanized Corrugated Steel Pipe

1. Riveted Galvanized Corrugated Steel Pipe can be used as:

-culverts

-bridges

-tunnels

-under passed

-ecological crossing

-pedestrian tunnel

-hangers

-shelter

-warehouse

-stores for ammunition

-belt conveyor protection

-ventilating duct

- and for reinforcement and reconstruction of existing structures as well.

Multiplate structures can be used for every class of service load provided that appropriate backfilling is performed.

2. Steel

Steel used for corrugated steel pipe is produced in accordance with Chinese standard.

Minimum yield strength 235N/mm2 and 345N/mm2

Steel standard Q235 and Q345

Also can accordance with EN10025

Steel standard S355JR, S235JR, S315MC

And can adopt the other standard steel according to customers’ demand


Depth of cover

The minimum allowable depth of cover is the largest of:

For roads H=B/8+0.2(m) H=B/6(m) and not less than 0.6(m)

For railways H=B/4 and not less than 0.6(m)

There is a possibility to reduce depth of cover provided that suitable checking calculations will be made.


Durability

Flexible structurePlate thicknessKinds of standard corrosion protectionRequired average min value(um)
plates≧6mmHot zinc galvanizing85
≧3mm do < 6mmHot zinc galvanizing70
≧1.5mm do < 3mmHot zinc galvanizing55
Bolts and nuts-Hot zinc galvanizing45


Our service

Our main products are drainage pipe, metal culvert drainage pipe, HDPE pipe. Our products such as corrugated drainage pipes' price are very cheap and all have high quality. If you are finding metal culvert pipe, you can select us! We can give you the cheapest offers!


As a professional manufacturer, We guarantee on-time delivery! If the delivery time exceeds the specified number of days, we will compensate. And we have customer service, guaranteed to answer your questions at any time.


We can design different specifications and types of products according to your needs. If you need, you can contact us by email or by phone. (Email address: marketing@corrugatedmetalculvert.com, phone number: 86 318 5876 109 ) All products are in cheap price.


You can use the search function of the website to search for the product you want to know. If you can't find it, you can send us an email to inquire, we provide professional services.


We have the department responsible for installation. We have successfully completed many items. If you have installation requirements, we can do it well.


You can choose to pay online.
