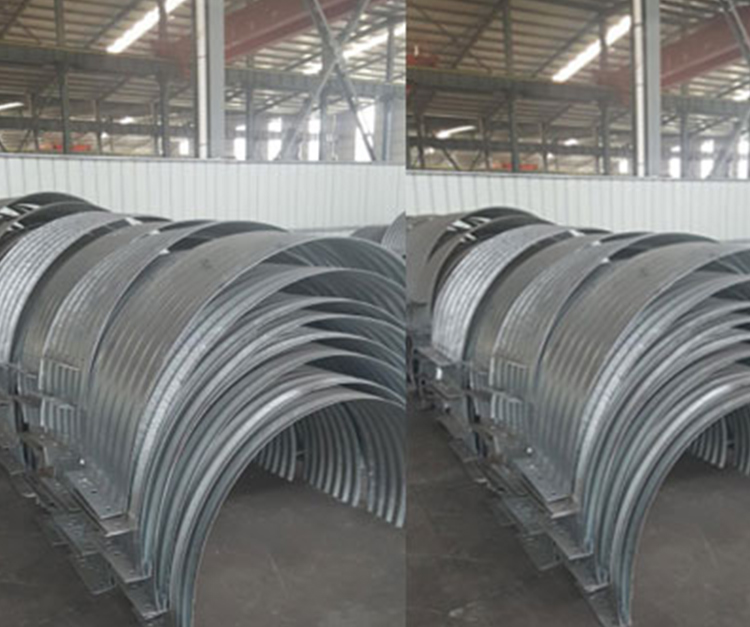

Connecting band for corrugated steel pipe

Hengshui Yitong Pipe Industry Co.,Ltd. is professional corrugated culvert pipes manufacturer, we have many successful cases for your reference, if you need any questions about corrugated metal pipe coupling bands, welcome to contact our professional staff to communicate with you!

Connecting band for corrugated steel pipe

Come to China corrugated metal pipe coupling bands manufacturer

Hengshui Yitong Pipe Industry Co.,Ltd. is professional corrugated culvert pipes manufacturer, we have many successful cases for your reference, if you need any questions about corrugated metal pipe coupling bands, welcome to contact our professional staff to communicate with you!

1. Applications

Connecting band for corrugated steel pipe can be used as:

-culverts

-bridges

-tunnels

-under passed

-ecological crossing

-pedestrian tunnel

-hangers

-shelter

-warehouse

-stores for ammunition

-belt conveyor protection

-ventilating duct

- and for reinforcement and reconstruction of existing structures as well.

Multiplate structures can be used for every class of service load provided that appropriate backfilling is performed.

2. Steel

Steel used for corrugated steel pipe is produced in accordance with Chinese standard.

Minimum yield strength 235N/mm2 and 345N/mm2

Steel standard Q235 and Q345

Also can accordance with EN10025

Steel standard S355JR, S235JR, S315MC

And can adopt the other standard steel according to customers’ demand


Depth of cover

The minimum allowable depth of cover is the largest of:

For roads H=B/8+0.2(m) H=B/6(m) and not less than 0.6(m)

For railways H=B/4 and not less than 0.6(m)

There is a possibility to reduce depth of cover provided that suitable checking calculations will be made.


Durability

Flexible structurePlate thicknessKinds of standard corrosion protectionRequired average min value(um)
plates≧6mmHot zinc galvanizing85
≧3mm do < 6mmHot zinc galvanizing70
≧1.5mm do < 3mmHot zinc galvanizing55
Bolts and nuts-Hot zinc galvanizing45



For more information on corrugated steel culvert pipe for sale, please contact Yitong Pipe Industry


At Yitong Pipe Industry, we sell a large variety of corrugated steel culvert pipe and many other types and grades of culvert pipe. This includes corrugated steel culvert pipe at discounted prices. We can also fabricate any type of corrugated steel culvert pipe or structural steel that you may need for your next construction project. We can culvert pipe to fit any length and can ship steel culvert pipe to your job site anywhere in the United States, Canada or Mexico.


To learn more about the types of pipe we can supply or to view our current selection of corrugated steel culvert pipe, please contact us online or via email today and ask us a direct question.
