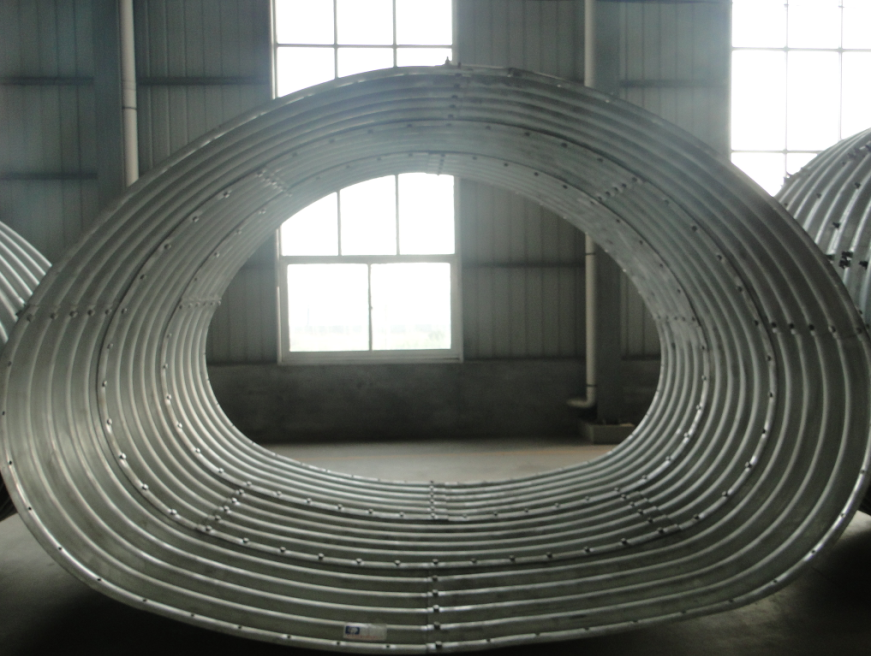

Corrugated steel arch culvert

corrugated steel pipe also named corrugated metal pipe. it is widely use for most field.

Just like road culvert, bridge, irrigation, drain etc. We are the biggest manufacture in China, we can supply all kinds of wave shape.

We are manufacture not trade company, so we can control the best quality with cheap price.


Economical, robust and efficient


Yitong manufactures and stocks a full line of corrugated steel pipe in a variety of materials, linings and coatings to meet specific durability and hydraulic requirements. Corrugated Steel Pipe (CSP) is available in round sizes from 6" to 144" and in 120" equivalent pipe arches. CSP has unmatched manufacturing capabilities to meet demanding field requirements, especially in larger diameters.


Specify us to produce what you need or, depending on your application scenario, we recommend the right corrugated steel pipe for you: size, shape, corrugation and metal thickness.


Depth of cover

The minimum allowable depth of cover is the largest of:

For roads H=B/8+0.2(m) H=B/6(m) and not less than 0.6(m)

For railways H=B/4 and not less than 0.6(m)

There is a possibility to reduce depth of cover provided that suitable checking calculations will be made.


Durability

Flexible structurePlate thicknessKinds of standard corrosion protectionRequired average min value(um)
plates≧6mmHot zinc galvanizing85
≧3mm do < 6mmHot zinc galvanizing70
≧1.5mm do < 3mmHot zinc galvanizing55
Bolts and nuts-Hot zinc galvanizing45
