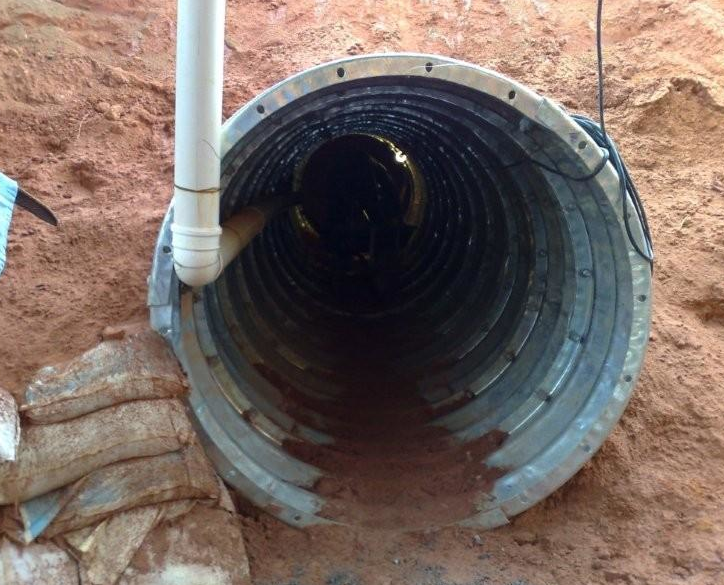

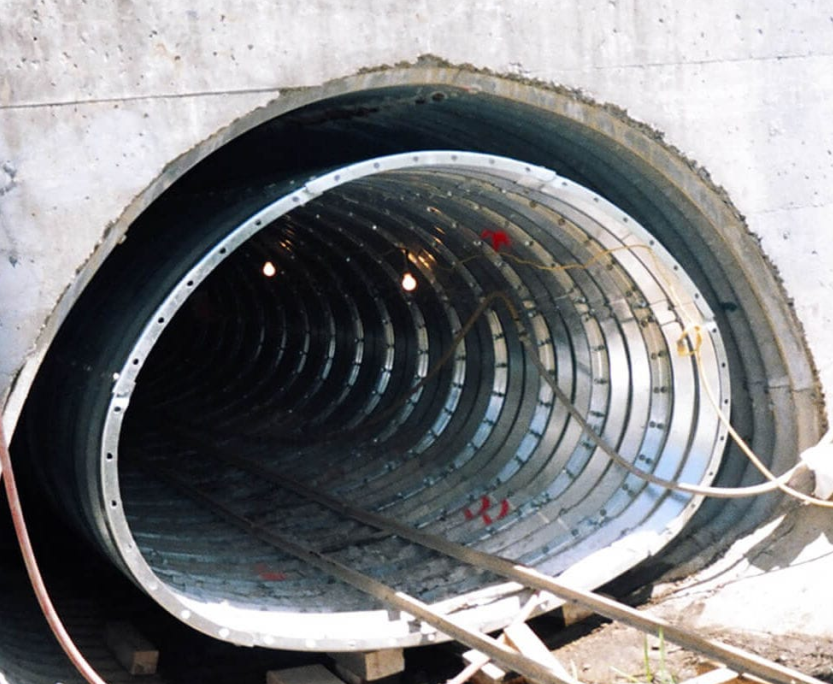

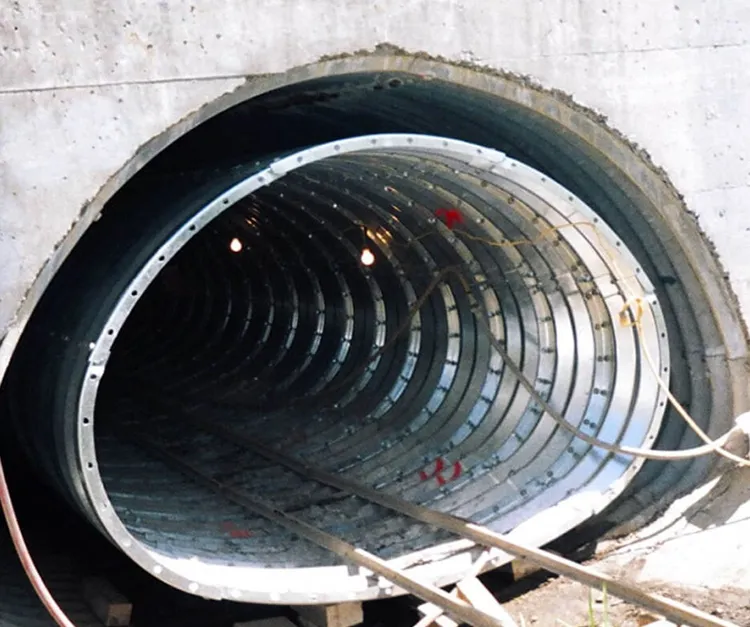

Corrugated Liner Plate provides corrugations extending through the lapped longitudinal joint. When assembled, this liner functions as a corrugated pipe with continuous circumferential corrugations. The result is more effective corrugation performance for the highest stiffness and strength in the industry! Strength to handle the inconsistencies encountered on a regular basis. Extra safety factor when you need it most!
The minimum allowable depth of cover is the largest of:
For roads H=B/8+0.2(m) H=B/6(m) and not less than 0.6（m）
For railways H=B/4 and not less than 0.6(m)
There is a possibility to reduce depth of cover provided that suitable checking calculations will be made.
| Flexible structure | Plate thickness | Kinds of standard corrosion protection | Required average min value(um） |
| plates | ≧6mm | Hot zinc galvanizing | 85 |
| ≧3mm do < 6mm | Hot zinc galvanizing | 70 | |
| ≧1.5mm do < 3mm | Hot zinc galvanizing | 55 | |
| Bolts and nuts | - | Hot zinc galvanizing | 45 |
