Corrugated steel pipe arch

Round、ellipse、semicircle、arch and other shape structure, inlet and outlet can be straight or oblique pipe portal as same as the subgrade slope.

Inquire Now

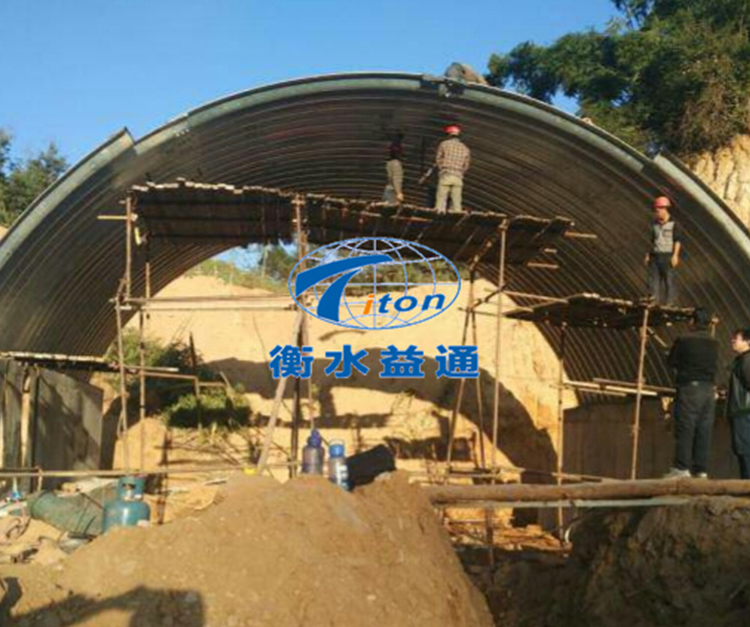

Corrugated steel pipe arch

Round、ellipse、semicircle、arch and other shape structure, inlet and outlet can be straight or oblique pipe portal as same as the subgrade slope. the metal corrugated pipe culvert diamter is Ø0.5~Ø16m, pipe wall thickness is 1.6mm-12mm, it can meet the need of the filling height 0.3-125m structures.


Application of the corrugation structure

road, railway, vehicel and pedestrian passage, culvert；

urban municipal utility tunnel.

bridge

tunnel liner, open cut tunnel, anti speckstone ,maintainance on the tunnel portal

wind channel in cold area

the anti skidstone protection cave on mountain road

coal channel and tunnel for open pit coal mine

military: tank depot, hangar, shelter, ammunition

  • Highway ConstructionHighway Construction
  • Mine ProjectionMine Projection
  • Municipal EngineeringMunicipal Engineering
  • Irrigation EngineeringIrrigation Engineering
  • Railway Construction ProjectionRailway Construction Projection
  • Other ApplicationOther Application

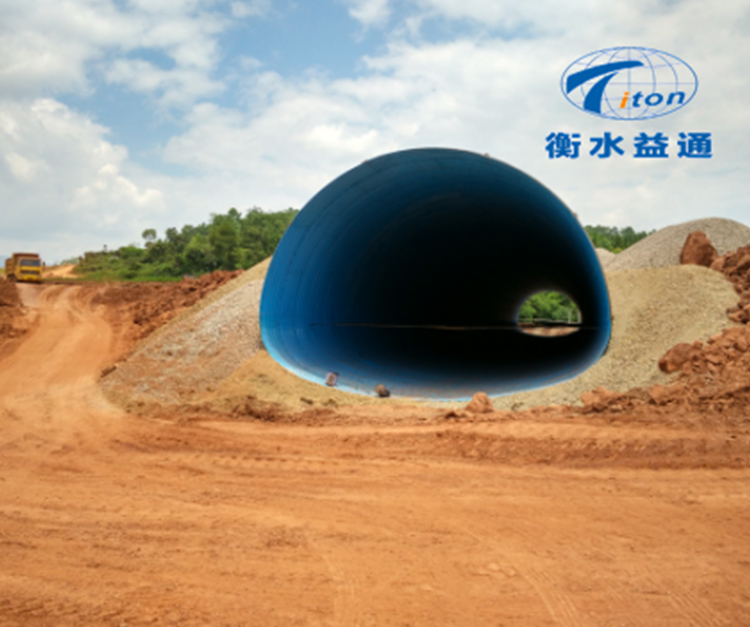

Corrugated steel half circle arch

Corrugated steel half circle arch

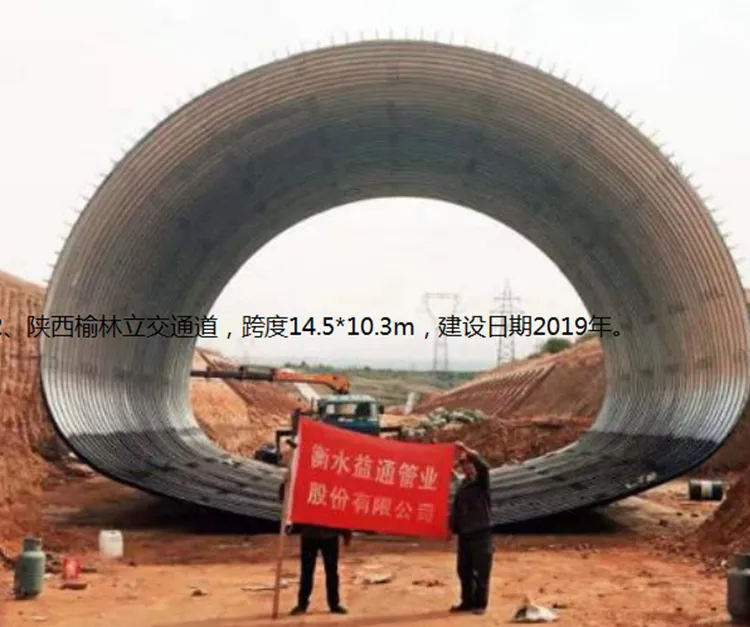

Corrugated steel arch

Corrugated steel arch

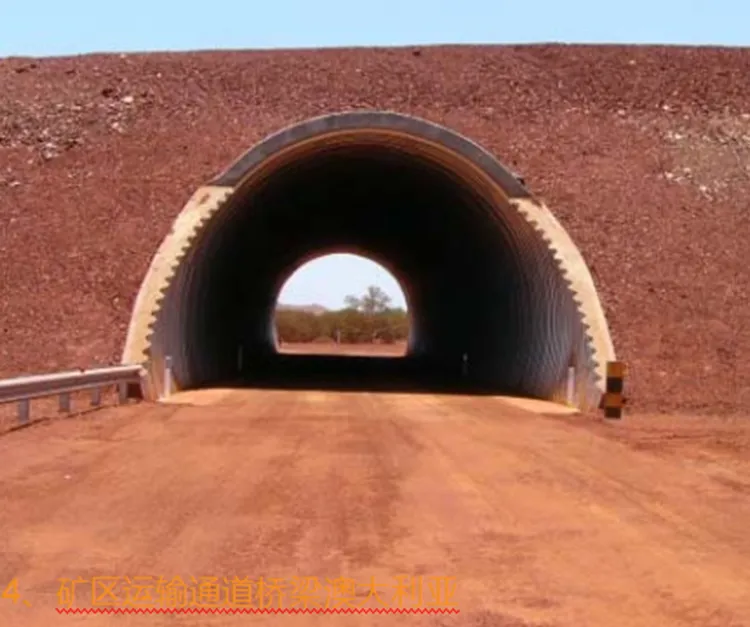

Multiplate corrugated steel pipe arch
