Application Demands of Steel Bellows Culvert

Application Demands of Steel Bellows Culvert

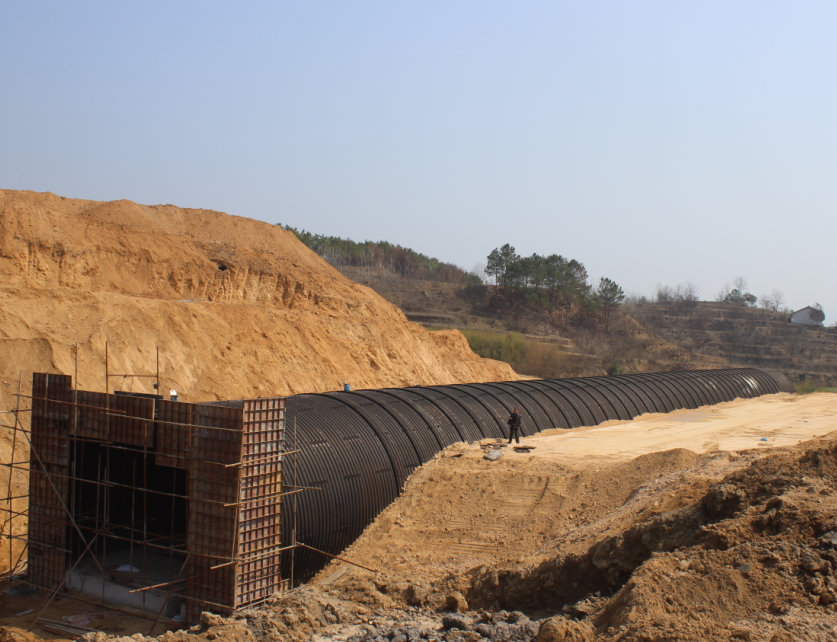

Corrugated steel culvert is likewise called the Corrugated pipeline culvert, describes the buried culvert under the freeway, train roadway shop with threaded Corrugated pipeline, it is made from Corrugated steel coil or make use of the waveform spellers right into round steel structure of the steel tube.The corrugated structure of the metal corrugated pipe culvert can make the culvert pavement bear reasonable lots, disperse the tons uniformly, as well as have specific anti-deformation ability, which can resolve the damage issue of the bridge and also concrete structure of the pipe culvert in the chilly location of north China (frost). Make the road surface area without expansion joint, enhance the driving comfort; It is beneficial to improve the "incorrect system" phenomenon at the junction of soft dirt foundation structure and also embankment as well as boost the web traffic safety.The operation and also maintenance cost of bellows culvert is low, as well as the real construction cost is lower than that of similar Bridges and culverts.The inlet as well as outlet of the steel corrugated pipe can also be made into a likely opening according to the proportion of the slope. The pipeline diameter series of the corrugated pipe is 0.5 ~ 8 m, as well as the thickness of the pipe wall is 3 mm ~ 7 mm, which can meet the demands of the 0.5-40 m density of the dirt filling.
Currently, strengthened concrete arch culverts are mainly made use of in the form of culverts in high-fill road sections, which have the advantages of much less steel intake, solid structure, big dead weight and overload potential, as well as lengthy service life, but likewise have a huge amount of stonework as well as profession Undesirable aspects such as more labor, long building and construction period as well as high needs on foundation bearing ability. Corrugated pipeline culvert suppliers think that compared to reinforced concrete arc culverts, steel corrugated pipe culverts have the adhering to benefits:
(1) Low requirements for structure. Because the steel corrugated pipe culvert is a versatile structure, its foundation is usually also an adaptable foundation. The negotiation of the culvert base and the settlement of the roadbed on both sides are consistent, so there is no demand to individually treat the base of the steel corrugated pipe independently throughout the building and construction of the culvert. The concept is exactly how to manage the roadbed and also the foundation of the culvert. Enhanced concrete arch culverts have greater requirements on the bearing capability of the structure. Arch culverts with a fill height of greater than 12m usually need structure bearing capability of more than 500kPa. The soft dirts in the southern area are widely dispersed, and the structure bearing ability normally does not meet the demands for setting arcs as well as culverts. Solid foundation treatment schemes are required to enhance the structure bearing capability. After therapy, uneven settlement may still be unavoidable, resulting in breaking of the arc culverts.
(2) Hassle-free building. Steel bellows manufacturing, pipeline assembly and civil construction can be implemented individually and also at the same time, substantially shortening the construction duration. The weight of the steel bellows is just 10% to 20% of the concrete items. On-site raising and constructing normally just take 2 to 3 weeks. There are fewer employees and also equipment included. The construction of strengthened concrete arch culverts usually takes numerous months as well as requires a great deal of manpower as well as material resources. At the same time, shortening the building period will likewise enable the very early shipment of the project and also reduce public complaints triggered by the building and construction.
(3) Much better economic climate. Through computation and contrast, the average price per metre of steel corrugated pipeline culverts pointed out in this post is about 3000 yuan lower than that of arch culverts of the exact same specifications, and the roadway areas with high fills have a tendency to have longer culverts. Consequently, using steel corrugated pipeline culvert can conserve more cost. If the construction cost of steel corrugated pipeline culverts and the feasible price financial savings in structure treatment are thought about, the economic performance is much more significant.
(4) Environmental management and low carbon, lowering or drastically deserting making use of conventional building products such as cement, sand and also gravel, etc., is beneficial to environmental protection as well as has significant value.
