Cangzhou Yingbin Avenue-box corrugated steel rainwater culvert; cross-section size: span diameter 4m, vector height 3.3; wave distance 381m, wave height 140mm; steel plate wall thickness: 6mm; culvert pipe length: 0.8-1.2m.
Foshan Tongji Road West Extension Project - the largest 12-hole span corrugated steel continuous arch bridge in China; section size: span diameter 11 (8.8) m, vector height 7.77 (6.2) m; wave spacing 381 m, wave height 140 mm; steel plate wall thickness: 10 (8) mm; pipe top filling: 1.5-2.5 m.

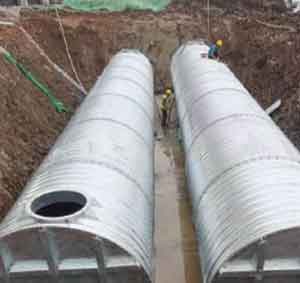

Nanjing rainwater transfer tank project - rainwater collection; cross-sectional size: diameter 2.62m; wave distance 230m, wave height 64mm; steel plate wall thickness: 3mm; pipe top filling: 1.5-2.5m.

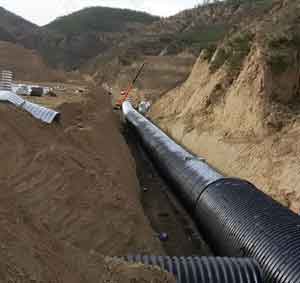

No.1 well of Checun coal mine in Zichang County, Yan'an - corrugated steel pipe long distance drainage project; section 2m, 2.5m, 3m; waveform parameter: 200*55; steel plate wall thickness: 6-8mm; culvert pipe length: 2300m; pipe top filling: 3-10m.

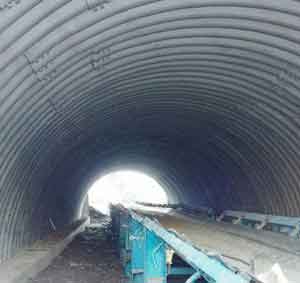

A coal mine across the tape transport system construction project in Inner Mongolia - corrugated steel plate arch bridge to protect coal mine conveyor belt; section span 7 (6) m, vector height 3.5 (3) m; wave spacing 381 mm, wave height 140 mm; steel plate wall thickness: 7.75 mm; culvert pipe length: 30-40 m; pipe top filling: 2-8 m.
A coal mine vertical road project in Inner Mongolia - corrugated steel plate arch bridge bears heavy live load of mine transportation; cross-sectional span 10m, sagittal height 5m; wave distance 381mm, wave height 140mm; steel plate wall thickness: 7.75mm; culvert pipe length: 30-40m; pipe top filling: 2-3m.
