Application of corrugated steel culvert pipe end reinforcement structure

Application of corrugated steel culvert pipe end reinforcement structure

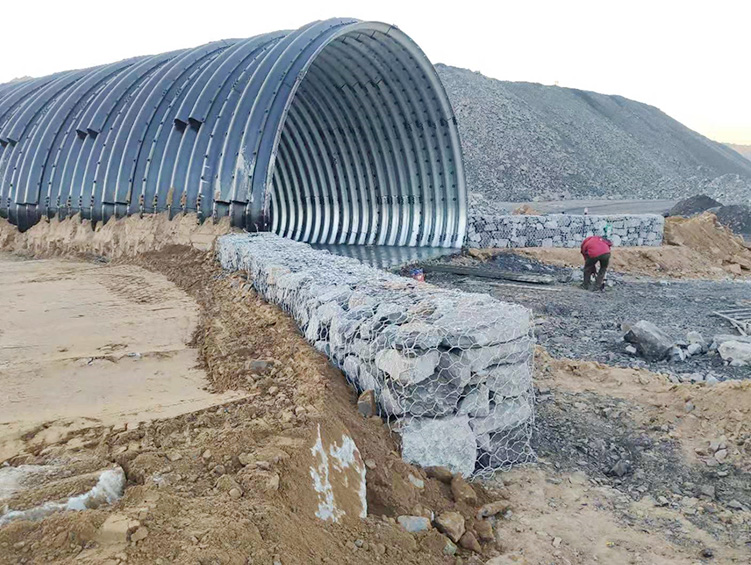

The project on the picture is for solve a problem of the culvert skew to the highway. If t he culvert in large diameter, when we design we have to consider if the culvert end has a enough strength to bearing the load from the highway.

End section steel reinforcement


Corrugated rib


Anti erosion plate


The project on the picture is for solve a problem of the culvert skew to the highway. If t he culvert in large diameter, when we design we have to consider if the culvert end has a enough strength to bearing the load from the highway. The large diameter culvert end is easy to deformation specially when it is skew to the highway, then we design a profile steam beam ring on the end of the culvert, increasing its strength to avoid the steel structure deformation and end wall crack up.

Special Customization

The function, size, and appearance can be based on different application scenarios and industries

Provide OEM/ODM services,support field conditions investigation, etc


Steel plate thickness: 1.6mm-10mm,

Span: 300mm-25m,

Waveform: 68X13mm, 147X47mm, 152X51mm, 200X55mm, 381X140mm
