Tunnel liner

Hengshui Yitong Pipe Industry Co.,Ltd. is professional corrugated culvert pipes manufacturer, we have many successful cases for your reference, if you need any questions about tunnel liner, welcome to contact our professional staff to communicate with you!

Tunnel liner

Come to China tunnel liner manufacturer

Hengshui Yitong Pipe Industry Co.,Ltd. is professional corrugated culvert pipes manufacturer, we have many successful cases for your reference, if you need any questions about tunnel liner, welcome to contact our professional staff to communicate with you!


Full Length Corrugations & Lapped Joints for More Effective Stiffness & Ring Compression. The Liner Plate provides optimum shaft stability and protection when constructing new utility tunnels, relining structures under highways and railroads and lining vertical shafts.

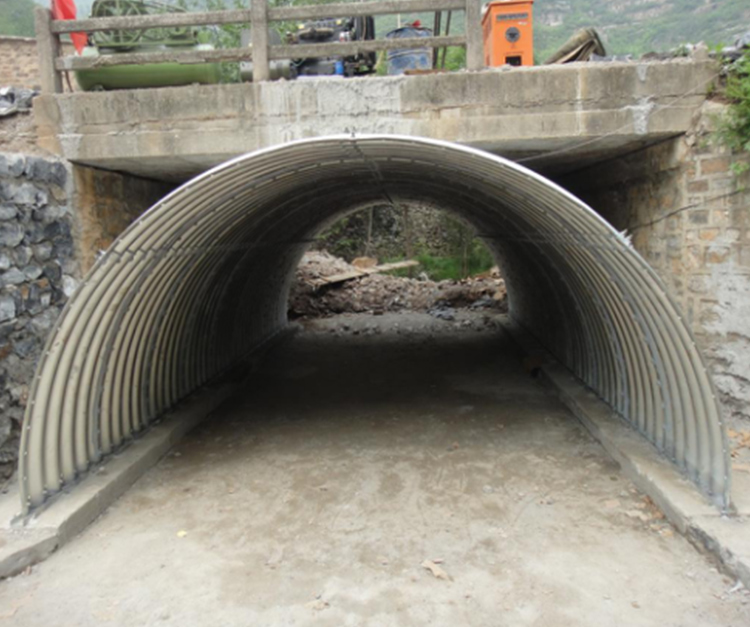

Tunnel liners are one of the most versatile segmental corrugated steel panel systems on the market today. Designed for laying soft ground tunnels and re-lining existing pipes under roads and railroads, their application extends to caissons, vertical shafts, mine entrances, etc. They are installed immediately after the tunnel boring machine is in operation. They are designed to resist earth pressure and groundwater head and to provide a framework for the end use of the tunnel.


They are quick and easy to install and cause minimal disturbance to road users and the surrounding environment as they do not require complex tunnel lining equipment. A variety of material options and coatings are available to optimize service life requirements.


Size table

CorrugationThicknessDiameter
178X45mmm3.0~7.0mm1200mm-maximu3000mm


Depth of cover

The minimum allowable depth of cover is the largest of:

For roads H=B/8+0.2(m) H=B/6(m) and not less than 0.6(m)

For railways H=B/4 and not less than 0.6(m)

There is a possibility to reduce depth of cover provided that suitable checking calculations will be made.


Durability

Flexible structurePlate thicknessKinds of standard corrosion protectionRequired average min value(um)
plates≧6mmHot zinc galvanizing85
≧3mm do < 6mmHot zinc galvanizing70
≧1.5mm do < 3mmHot zinc galvanizing55
Bolts and nuts-Hot zinc galvanizing45


Advantages

Economy of construction time, excavation, materials and manpower.

Maximum support for each given length, minimum weight of steel.

Variations in slab design criteria for various tunnel shapes in dry or wet ground.

Predictable strength, fire resistance.

Continuous support for the critical mining phase of soft ground tunneling.

Easy to store, handle and erect, whether the tunnel is straight, curved, round, oval or horseshoe shaped.

Gasket plates that seal joints to prevent leaks and reduce air loss if water becomes a problem.


More tunnel liner information, please contact Yitong Pipe Industry


At Yitong Pipe Industry, we sell a large variety of steel culvert pipe and many other types and grades of steel culvert pipe. this includes culvert pipe at discounted prices. we can also fabricate any type of steel pipe or structural steel that you may need for your next construction project. We can cut pipe to fit any length and can ship culverts directly to your job site anywhere in the United States, Canada or Mexico.


To learn more about the types of pipe we can supply or to view our current selection of culvert pipe, please contact us online or via email today and ask us a direct question.

marketing@corrugatedmetalculvert.com


For more information about the products, please enter the PDF link below.

ASTM A796A796M-2010

ASTM A798A798M-2007

ASTM A762A762M-2008

ASTM A761-A761M-04(2009)

ASTM A862-A862M-1998(2008)

ASTM A926-2003(2008)

ASTM A807-A807M-02(2008)

ASTM A849-2010
