How Much Weight Can a Corrugated Pipe Hold?

Corrugated pipes are widely used in various applications, from drainage systems to culverts, due to their lightweight, durability, and flexibility. One common question that arises is, how much weight can these pipes support? The answer depends on several factors, including the material of the pipe, its diameter, wall thickness, and the conditions under which it is installed.

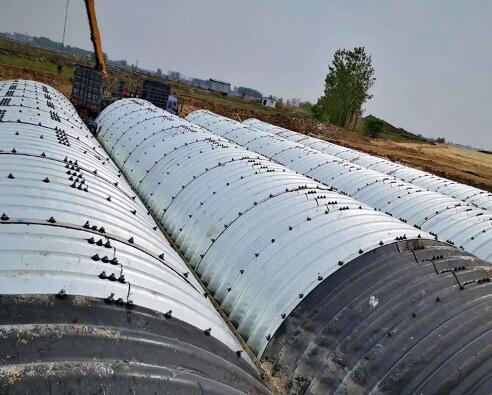

Load Capacity and Performance Factors of Corrugated Steel Pipes

Corrugated steel pipes are engineered to provide exceptional strength and durability under various load conditions. Understanding their load capacity requires consideration of several key technical factors:

1. Pipe Gauge and Wall Thickness
The gauge of the steel pipe directly affects its load-bearing capacity. Lower gauge numbers correspond to thicker walls and greater strength. For example:

• 8 gauge steel pipe typically has a wall thickness of approximately 0.164 inches (4.17 mm)

• 10 gauge steel pipe typically has a wall thickness of approximately 0.1345 inches (3.42 mm)

• 16 gauge steel pipe has a thinner wall of about 0.0598 inches (1.52 mm)

Thicker walls resist deformation better and allow the pipe to support heavier vertical and live loads.

2. Pipe Diameter Impact on Load Capacity
The diameter of the pipe influences how load is distributed across the pipe surface. Larger diameter pipes have higher flow capacity but generally lower resistance to vertical loading per unit area, requiring proper embedment and compaction for optimal performance. Common diameters range from 6 inches up to 72 inches or larger depending on application.

3. Load Ratings and Testing Standards
Corrugated steel pipes are tested to meet standards such as AASHTO M36 and ASTM A760, ensuring they withstand HS-20 or HS-25 highway loads (up to 32,000 lbs axle load). For example, a 48-inch diameter, 10 gauge steel pipe can safely support highway traffic loads when installed according to recommended cover and bedding specifications.

4. Soil Cover and Installation Depth
Proper soil cover is critical for maximizing pipe load capacity. The minimum cover typically ranges from 1 to 3 feet depending on load and soil conditions. Heavier loads and poor soil compaction may require increased cover or reinforced pipe sections. The surrounding soil acts as a structural support, transferring loads away from the pipe.

5. Corrugation Profile and Structural Integrity
The corrugation depth and profile shape contribute to pipe strength. Deeper corrugations enhance stiffness and load distribution. Standard corrugated steel pipes feature sinusoidal or trapezoidal profiles designed to resist buckling and compressive forces.

6. Corrosion Protection and Longevity
Galvanized coatings or polymer linings protect steel pipes from corrosion, extending service life especially in aggressive soil or drainage environments. Pipe lifespan can exceed 50 years with proper protective measures.

Typical Load Capacities by Pipe Size and Gauge (Approximate)

By carefully selecting pipe gauge, diameter, and installation conditions, corrugated steel pipes provide reliable performance for demanding infrastructure projects including highways, stormwater management, sewer systems, and agricultural drainage.

Customized designs are available to meet your specific needs and preferences.

Material Copositionm

The material composition of a corrugated pipe plays a significant role in determining its weight-bearing capacity. These pipes are typically made from materials such as plastic, metal, or concrete. Each material has its own set of properties that influence its strength and load-bearing capabilities.

Plastic corrugated pipes, for example, are lightweight and flexible, making them suitable for applications where weight is a concern. However, their load-bearing capacity may be lower compared to metal or concrete pipes of the same size due to the inherent properties of plastic.

Metal corrugated pipes, such as those made from galvanized steel or aluminum, are known for their strength and durability. They can withstand heavier loads and are often used in situations where high structural integrity is required.

Concrete corrugated pipes offer excellent strength and stability, making them ideal for heavy-duty applications such as stormwater management or culverts. They can support significant weight and are resistant to deformation under pressure.

Diameter and Wall Thickness

The diameter and wall thickness of a corrugated pipe also influence its load-bearing capacity. Generally, larger diameter pipes with thicker walls can support more weight compared to smaller pipes with thinner walls. This is because larger pipes have a greater cross-sectional area, allowing them to distribute the load over a larger surface area.

Thicker walls provide additional strength and resistance to deformation, making the pipe less susceptible to failure under heavy loads. Engineers often consider these factors when designing drainage systems or culverts to ensure they can support the anticipated weight of traffic or soil.

Installation Conditions

The conditions under which a corrugated pipe is installed can affect its load-bearing capacity. Factors such as soil type, depth of installation, and the presence of external forces like vehicular traffic or heavy machinery can all impact the performance of the pipe.

In areas with soft or unstable soil, additional support measures may be necessary to prevent the pipe from sinking or collapsing under load. Proper backfilling and compaction techniques can help distribute the weight evenly and improve the overall stability of the installation.

Conclusion

In conclusion, the weight-bearing capacity of a corrugated pipe depends on various factors, including its material composition, diameter, wall thickness, and installation conditions. While plastic pipes may be suitable for lightweight applications, metal and concrete pipes offer greater strength and durability, making them better suited for heavy-duty use. Engineers and designers must carefully consider these factors when selecting and installing corrugated pipes to ensure they can withstand the anticipated loads over their lifespan.

For further inquiries about corrugated pipes or to find a reliable supplier, please feel free to contact us.
