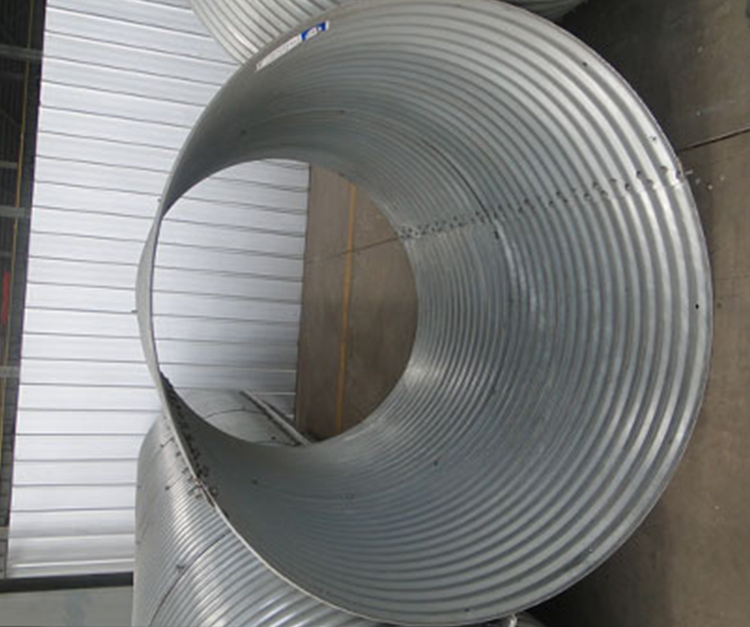

Flanged Nestable Metal Pipe Culvert

1. Flanged Nestable Metal Pipe CulvertAdvantages and Applications

Nestable corrugated culvert pipe offers a fast and economical solution to contractors and owners who require a strong casing to place around an already installed utility line. This can be done easily without disrupting the line to be encased. Also can be used in the petroleum , chemical protection shell pipe, and infrastructure construction.
There are two standard methods used in attaching the half-round pipe segments together bolting and flanges.

Compared with integral corrugated pipes, this one has a nestable structure, which means they can be nested into bundles for easier handling and transportation. Therefore, they are generally applied to small projects or sites with bad construction conditions.

Nesting, a shipping technique developed in the 1930’s, was devised to eliminate problems for overseas shipment. It provides an economical solution to conserve shipping space.


Applications

Storm sewers, culvert, agricultural irrigation, conveyor covers, cable protection, drains, casing, etc.

Comprehensive designs and sizes are available based upon customer needs and site condition.

Corrugated Metal Pipe advantages include

Quality Nestable corrugated culvert pipe are manufactured to meet the international quality
Strength corrugated metal culverts have great strength in proportion to their weight
Flexible Flexible structures can absorb impact without breaking or disjointing
Durability The use of high quality 600g/m2 galvanized steel
Transport The “nested” arrangement provides for maximum freight economy.
Assembly The quick and easy assembly of nestable pipe saves both time and installation costs.
Economy Low material and installation costs ensure nestable Corrugated steel pipes are extremely price competitive.
Service Experienced YiTong engineers are availabe to provide asistance as and when required.


2. Corrugated Metal Pipe Assembly

The technical data included in this brochure is applicable to flanged type pipe and bolting type pipe both. Revelant data on the other types are available on request. Corrugated metal culvert is made from galvanized steel sheets with corrugations 68mm width by 13mm depth and corrugations 75mm width by 25mm depth.

The 68X13mm in 20 corrugations with an effective laying length 1360mm. The sheets in thickness from 1.6~4.2mm.

The 75X25mm corrugations, if the sheet thickness is smaller than 3mm, it is in 16 corrugations with an effective laying length 1200mm, if the sheet thickness is bigger than 3mm, it is in 17 corrugations with an effective laying length 1275mm.

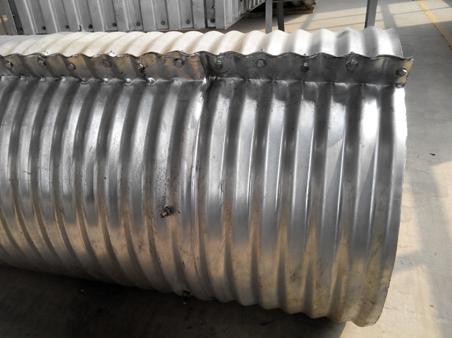

Field assembley is accomplished by bolting the sections together at the flange with M12X40 galvanized nuts and bolts.

3. Flanged Nestable Metal Half Round Culvert Pipe Production Specifications



wall thickness Diameter

2.0mm2.75mm3.0mm3.75mm4.75mm
6000mm● min:0.3m max:43m● Min:0.3m Max:58m● Min:0.3m Max:61m● Min:0.3m Max:61m
7000mm● Min:0.3m Max:35m● Min:0.3m Max:53m● Min:0.3m Max:53m● Min:0.3m Max:57m
8000mm● Min:0.3m Max:31m● Min:0.3m Max:46m● Min:0.3m Max:50m● Min:0.3m Max:50m
10000mm● Min:0.3m Max:25m● Min:0.3m Max:36m● Min:0.3m Max:38m● Min:0.3m Max:38m
12000mm● Min:0.5m Max:18m● Min:0.5m Max:29m● Min:0.5m Max:32m● Min:0.5m Max:32m● Min:0.5m Max:32m
14000mm ● Min:0.5m Max:28m● Min:0.5m Max:30m● Min:0.5m Max:30m● Min:0.5m Max:30m
15000mm ● Min:0.5m Max:23m● Min:0.5m Max:25m● Min:0.5m Max:25m● Min:0.5m Max:25m
16000mm ● Min:0.5m Max:16m● Min:0.5m Max:18m● Min:0.5m Max:30m● Min:0.5m Max:32m
18000mm ● Min:0.5m Max:20m● Min:0.5m Max:24m● Min:0.5m Max:28m● Min:0.5m Max:30m
20000mm ● Min:0.5m Max:18m● Min:0.5m Max:22m● Min:0.5m Max:28m● Min:0.5m Max:30m

Tips:

1.the data of sheet means depth of fill, named min and max;

2.different diameter, thickness,length and other size are available, accroding to your requirement.



Our service

Our main products are drainage pipe, metal culvert drainage pipe, HDPE pipe. Our products such as corrugated drainage pipes' price are very cheap and all have high quality. If you are finding metal culvert pipe, you can select us! We can give you the cheapest offers!

As a professional manufacturer, We guarantee on-time delivery! If the delivery time exceeds the specified number of days, we will compensate. And we have customer service, guaranteed to answer your questions at any time.

We can design different specifications and types of products according to your needs. If you need, you can contact us by email or by phone. (Email address: marketing@corrugatedmetalculvert.com, phone number: 86 318 5876 109 ) All products are in cheap price.

You can use the search function of the website to search for the product you want to know. If you can't find it, you can send us an email to inquire, we provide professional services.

We have the department responsible for installation. We have successfully completed many items. If you have installation requirements, we can do it well.

You can choose to pay online.

For more information about the products, please enter the PDF link below.

ASTM A796A796M-2010

ASTM A798A798M-2007

ASTM A762A762M-2008

ASTM A761-A761M-04(2009)

ASTM A862-A862M-1998(2008)

ASTM A926-2003(2008)

ASTM A807-A807M-02(2008)

ASTM A849-2010
