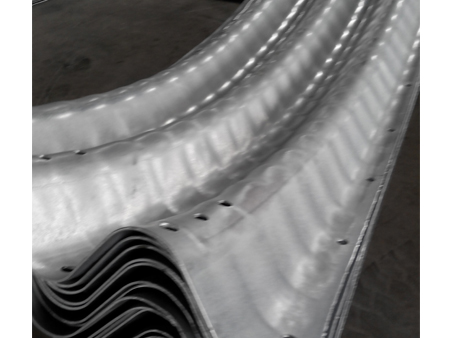

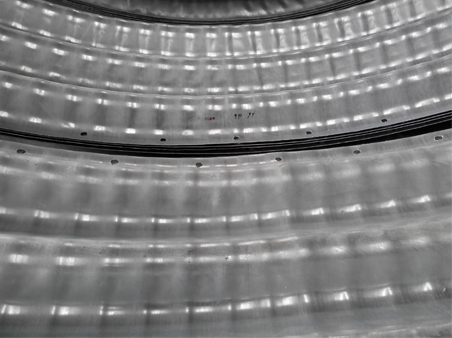

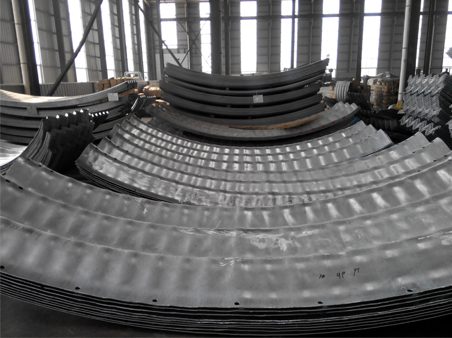

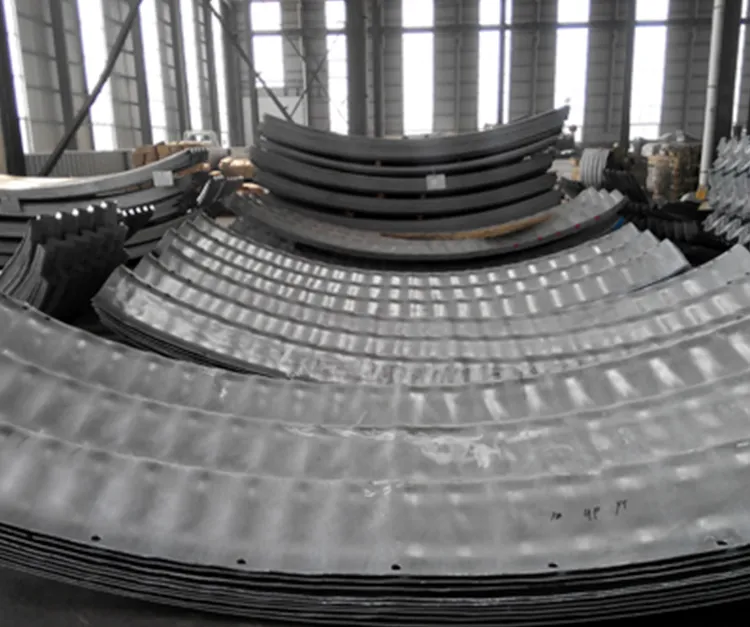

Large Metal Culvert Pipe - Corrugation 400mm_x 150mm

Multiplate Structures Pipe - Large Metal Culvert Pipe

Multiplate structures pipe are approved by most of American road and railways administrations and national standards. They are manufactured in accordance to American and Australia standard.


1.Multiplate structures pipe can be used as:


- culverts
- bridges
- tunnels
- under passed
- ecological crossing
- pedestrian tunnel
- hangers
- shelter
- warehouse
- stores for ammunition
- belt conveyor protection
- ventilating duct
- and for reinforcement and reconstruction of existing structures as well.

Metal corrugated pipe can be used for every class of service load provided that appropriate backfilling is performed.


2. Steel


Metal corrugated pipe used for mltiplate structure pipe is produced in accordance with Chinese standard.
Minimum yield strength 235N/mm2 and 345N/mm2
Steel standard Q235 and Q345
Also can accordance with EN10025
Steel standard S355JR, S235JR, S315MC
And can adopt the other standard steel according to customers’ demand


3. Durability


Corrosion resistance of steel is the main factor deciding about the durability of steel structures. Long-term tests done in many countries of world have proven that, the proper corrosion protection of the steel structure let to prolong the life time of structures. Durability of structures built with use of multiplate 150 metal corrugated pipe designed for the zinc coatings give the so-called cathode protection. Thanks to this they can protect the steel also in electrochemical way achieving the multi-elemental corrosion protection system.
Attention:  in strong corrosion environment, we suggest hot-dip plastic on the galvanization, plastic thick 0.3mm, (single face dip), the durability is more than 100 years.
When designing the structure plate culvert pipe durability should be considered with regards to:
- zinc coatings
- paint coatings
-sacrificial thickness of steel as allowance for corrosion
(increasing of the plate thickness)
- other kinds of protections
Steel corrugated pipe is necessary to remark that the corrosion points appear most often in the bottom part, where the stress level in the steel structure is the lowest. It means that by designing the structure according the most stressed cross-section-the upper sphere, there is an additional security reserve in scope of the structure durability.
System of corrosion protection duplex
For longer structure durability (especially in agressive environment) there is a possibility of the additional corrosion protection by epoxy painting. Protection of structure both with zinc coating and epoxy coating creates duplex system. Also, after assembly Corrugated steel culvert , we can make the duplex corrosion protection according to customers request color and materials.


4. Bolts and nuts


The plate making up the structures are connected by high strength bolts of grade not lower than 8.8. Their length varies with the thickness of the steel plates. Generally shorter bolts will be used to join two plates, longer bolts for three plate laps. Nuts should be situated from inside of culvert for bottom an corner plates, but in top plates the nuts should be situated from outside of culvert.

Steel corrugated pipe corrugation 400mm * 150mm is the latest R & D product of Yitong company,  greater resistance to deformation waveform such products stronger, applied in  large-scale projects, and it is stronger resistance to stress, such products  have been exported to Russia and Middle East countries.

wall thickness Diameter3.0mm4.0mm5.0mm6.0mm7.0mm8.0mm9.0mm10.0mm
6000mm
           Min:1.5m
           Max:8m

           Min:1.5m
           Max:11m

           Min:1.5m
           Max:14m

           Min:1.5m
           Max:17m

           Min:1.5m
           Max:19.7m

           Min:1.5m
           Max:22m

           Min:1.5m
           Max:24m

           Min:1.5m
           Max:26m
7000mm
           Min:1.8m
           Max:7m

           Min:1.8m
           Max:9m

           Min:1.8m
           Max:12m

           Min:1.8m
           Max:14.5m

           Min:1.8m
           Max:17m

           Min:1.8m
           Max:19m

           Min:1.8m
           Max:21m

           Min:1.8m
           Max:23m
8000mm
           Min:2m&
           Max:6m

           Min:2m
           Max:6m

           Min:2m
           Max:10m

           Min:2m
           Max:12m

           Min:2m
           Max:14m

           Min:2m
           Max:16m

           Min:2m
           Max:18m

           Min:2m
           Max:20m
9000mm
           Min:2.2m
           Max:5m

           Min:2.2m
           Max:7m

           Min:2.2m
           Max:9m

           Min:2.2m
           Max:11m

           Min:2.2m
           Max:13m

           Min:2.2m
           Max:15m

           Min:2.2m
           Max:17m

           Min:2.2m
           Max:19m
10000mm
           Min:2.5m
           Max:5m

           Min:2.5m
           Max:6m

           Min:2.5m
           Max:8m

           Min:2.5m
           Max:10m

           Min:2.5m
           Max:11m

           Min:2.5m
           Max:13m

           Min:2.5m
           Max:15m

           Min:2.5m
           Max:17m
11000mm
           Min:3m
           Max:4m

           Min:3m
           Max:6m

           Min:3m
           Max:7m

           Min:3m
           Max:9m

           Min:3m
           Max:10m

           Min:3m
           Max:12m

           Min:3m
           Max:14m

           Min:3m
           Max:15m
12000mm
           Min:3.5m
           Max:4m

           Min:3.5m
           Max:5m

           Min:3.5m
           Max:7m

           Min:3.5m
           Max:8.5m

           Min:3.5m
           Max:9.5m

           Min:3.5m
           Max:11.5m

           Min:3.5m
           Max:13.5m

           Min:3.5m
           Max:15.5m
13000mm
           Min:3.5m
           Max:3.5m

           Min:3.5m
           Max:4.5m

           Min:3.5m
           Max:6.5m

           Min:3.5m
           Max:8m

           Min:3.5m
           Max:9m

           Min:3.5m
           Max:11m

           Min:3.5m
           Max:13m

           Min:3.5m
           Max:15m
14000mm
           Min:3.5m
           Max:3.5m

           Min:3.5m
           Max:4.5m

           Min:3.5m
           Max:6.5m

           Min:3.5m
           Max:8m

           Min:3.5m
           Max:9m

           Min:3.5m
           Max:11m

           Min:3.5m
           Max:13m

           Min:3.5m
           Max:15m
15000mm
           Min:3.5m
           Max:3.5m

           Min:3.5m
           Max:4.5m

           Min:3.5m
           Max:6.5m

           Min:3.5m
           Max:8m

           Min:3.5m
           Max:9m

           Min:3.5m
           Max:11m

           Min:3.5m
           Max:13m

           Min:3.5m
           Max:15m
16000mm
           Min:3.5m
           Max:3.5m

           Min:3.5m
           Max:4.5m

           Min:3.5m
           Max:6.5m

           Min:3.5m
           Max:8m

           Min:3.5m
           Max:9m

           Min:3.5m
           Max:11m

           Min:3.5m
           Max:13m

           Min:3.5m
           Max:15m



Our service

Our main products are drainage pipe, metal culvert drainage pipe, HDPE pipe. Our products such as corrugated drainage pipes' price are very cheap and all have high quality. If you are finding metal culvert pipe, you can select us! We can give you the cheapest offers!

As a professional manufacturer, We guarantee on-time delivery! If the delivery time exceeds the specified number of days, we will compensate. And we have customer service, guaranteed to answer your questions at any time.

We can design different specifications and types of products according to your needs. If you need, you can contact us by email or by phone. (Email address: marketing@corrugatedmetalculvert.com, phone number: 86 318 5876 109 ) All products are in cheap price.

You can use the search function of the website to search for the product you want to know. If you can't find it, you can send us an email to inquire, we provide professional services.

We have the department responsible for installation. We have successfully completed many items. If you have installation requirements, we can do it well.

You can choose to pay online.

For more information about the products, please enter the PDF link below.

ASTM A796A796M-2010

ASTM A798A798M-2007

ASTM A762A762M-2008

ASTM A761-A761M-04(2009)

ASTM A862-A862M-1998(2008)

ASTM A926-2003(2008)

ASTM A807-A807M-02(2008)

ASTM A849-2010
