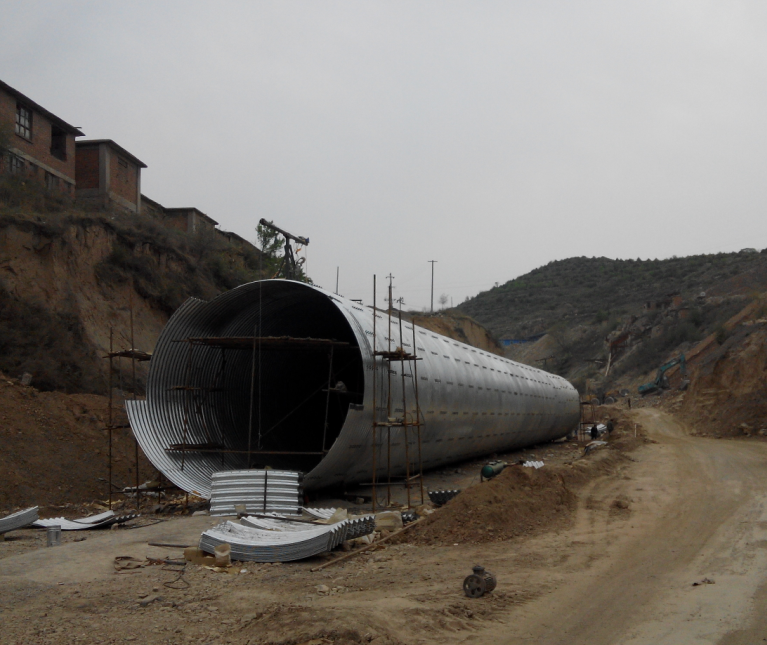

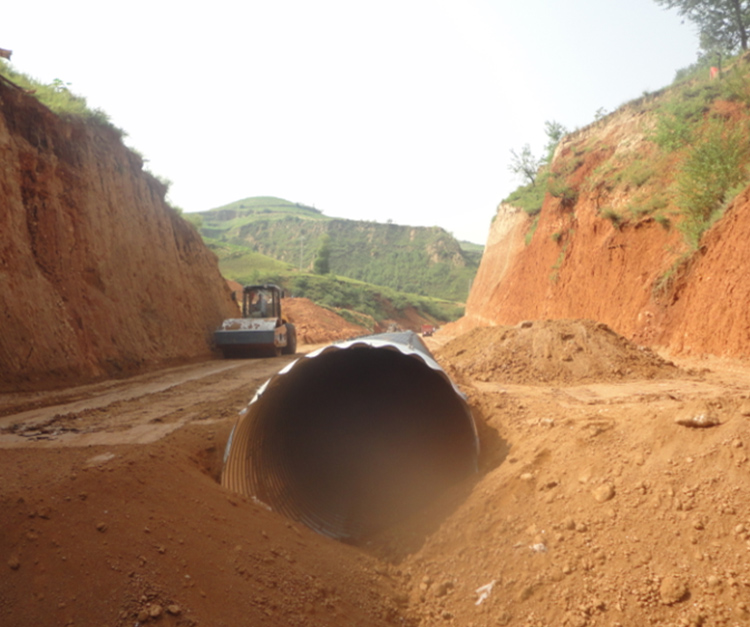

Metal culvert pipe

Structural Plate is perfect for projects that require large pipe. This product offers efficient, easy installation, This the biggest corrugation we produced which can offer the highest load bearing capacity.

Metal culvert pipe

Structural Plate is perfect for projects that require large pipe. This product offers efficient, easy installation, This the biggest corrugation we produced which can offer the highest load bearing capacity.


We can design different specifications and types of products according to your needs. All products are in cheap price. As a professional corrugated metal pipe(CMP) suppliers manufacturer, We guarantee on-time delivery!

If the delivery time exceeds the specified number of days, we will compensate. And we have customer service, guaranteed to answer your questions at any time. If you need, you can contact us by email or by phone. (Email address:, phone number: 86 318 5876 109 )

YITON Metal Culvert Pipe

If you need culvert pipe for your next irrigation or construction job, we can provide what you need. At YITONG, we offer a large selection of all types of pipe for culverts, and can even custom fabricate pipe in any length or diameter.

Corrugated Metal Pipe(CMP) Sizes 6" diameter to 144" diameter

Standard length is 20 feet, but many other lengths are available

Round or arched

Available wall thickness and coating range

Various corrugations to meet H20 and E80 live loads

Smooth internal piping available

Maximum flow and dura flow pipe

Corrugated Metal Pipes

CMP stands for corrugated metal pipe. It is a type of pipe that is commonly used in culverts, storm sewers, and other types of drainage systems. CMP is made of corrugated metal sheets that are rolled into a circular shape and joined together with seams. The corrugations provide structural support and allow the pipe to withstand the loads and forces associated with the flow of water.

Culvert pipes can be used in any situation where runoff or overflow (such as stormwater) needs to be directed to another location. For example, culvert pipes are often used to convey irrigation water or runoff water from one location to another. Culverts are commonly used for residential, agricultural and other construction projects. This type of pipe is also referred to as a sluice pipe or flume pipe in situations where water needs to be directed from another location to a designated location.

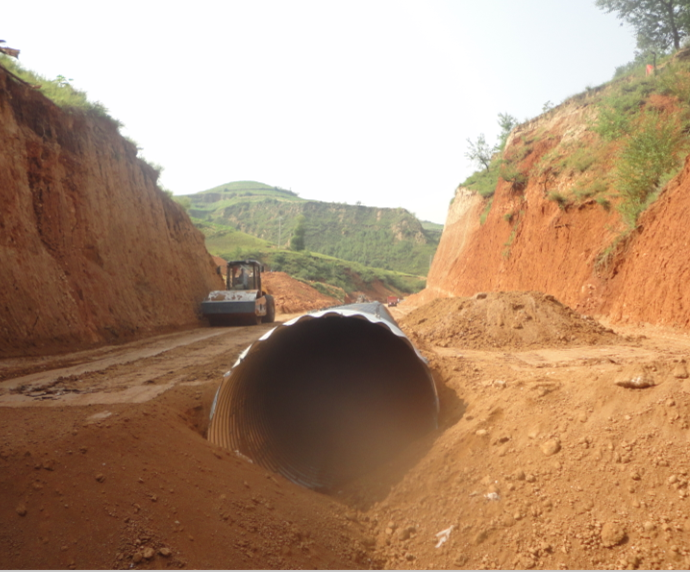

Culvert pipes are also commonly used to direct water from one side of a roadway directly underneath the roadway to the other side of the roadway. In this case, the culvert pipe needs to be very strong, durable and able to withstand the heavy loads from the road traffic.

The durability and thickness of steel pipe gives it greater strength than concrete or corrugated pipe. For this reason, steel pipe is often used in culvert applications. At YITONG, we offer many types of pipe that can be used as culverts. Because we carry stronger and more durable culvert pipe, it can be used in more aggressive applications and is often more durable than many other types of pipe. For these types of applications, reconditioned or used pipe is a great and affordable option because culvert pipe does not need to meet exact or strict specifications.

Large Culverts Metal Pipes Features

Lightweight - About 1/10 to 1/15 times the weight of traditional concrete pipe in the same diameter and length.

Easy to transport - Spiral corrugated pipes can be manually carried on narrow construction sites that large handling equipment cannot get in.

Fast installation - Spiral corrugated pipes can be assembled at any length based on the construction requirements when installing. Meanwhile, it is possible to disassemble the pipe and remove it to other places when necessary.

Superb corrosion resistance - Heavy zinc coating no less than 600g/m2 inside and outside the pipe allows for significant rust and corrosion resistance.

High applicability - Low requirements for foundation bearing capacity and ground planeness. Thus, our pipes still perform well in areas lacking Dinas or low foundation-bearing capacity.

Various specifications - A wide range of wall thicknesses, pipe diameters, and corrugation wave sizes are available to meet specific construction requirements.

Large CMP Culverts Applications

CMP is used in a wide variety of applications, including the following:

Culverts: CMP is often used to construct culverts, which are underground channels that carry water under roads, railroads, and other structures.

Storm sewers: CMP is also commonly used to construct storm sewers, which are underground pipes that carry stormwater runoff from streets, rooftops, and other surfaces to a designated outlet.

Drainage systems: CMP is often used in the construction of drainage systems, which are designed to remove excess water from an area.

Retaining walls: CMP can also be used to construct retaining walls, which are used to hold back soil or water.

Flood control: CMP can be used to construct flood control structures, such as levees, to protect against flooding.

Erosion control: CMP can be used in erosion control projects to prevent erosion of soil from water or wind.

CMP is a versatile and durable material that is well-suited for use in a variety of civil engineering and construction projects. Such as: Drain system; Small bridges; Stormwater detention; Gas pipeline protection tube; Underground cable protection; Underpasses; Passages for wildlife; Coalmine vent pipes; Well casing pipes; Cisterns; Agricultural irrigation; Municipal engineering, etc.

Depth of cover

The minimum allowable depth of cover is the largest of:

For roads H=B/8+0.2(m) H=B/6(m) and not less than 0.6(m)

For railways H=B/4 and not less than 0.6(m)

There is a possibility to reduce depth of cover provided that suitable checking calculations will be made.


Flexible structurePlate thicknessKinds of standard corrosion protectionRequired average min value(um)
plates≧6mmHot zinc galvanizing85
≧3mm do < 6mmHot zinc galvanizing70
≧1.5mm do < 3mmHot zinc galvanizing55
Bolts and nuts-Hot zinc galvanizing45

Our service

Our main products are drainage pipe, metal culvert drainage pipe, HDPE pipe. Our products such as corrugated drainage pipes' price are very cheap and all have high quality. If you are finding metal culvert pipe, you can select us! We can give you the cheapest offers!

You can use the search function of the website to search for the product you want to know. If you can't find it, you can send us an email to inquire, we provide professional services.

We have the department responsible for installation. We have successfully completed many items. If you have installation requirements, we can do it well.

You can choose to pay online.

For more information about the products, please enter the PDF link below.

ASTM A796A796M-2010

ASTM A798A798M-2007

ASTM A762A762M-2008

ASTM A761-A761M-04(2009)

ASTM A862-A862M-1998(2008)

ASTM A926-2003(2008)

ASTM A807-A807M-02(2008)

ASTM A849-2010
